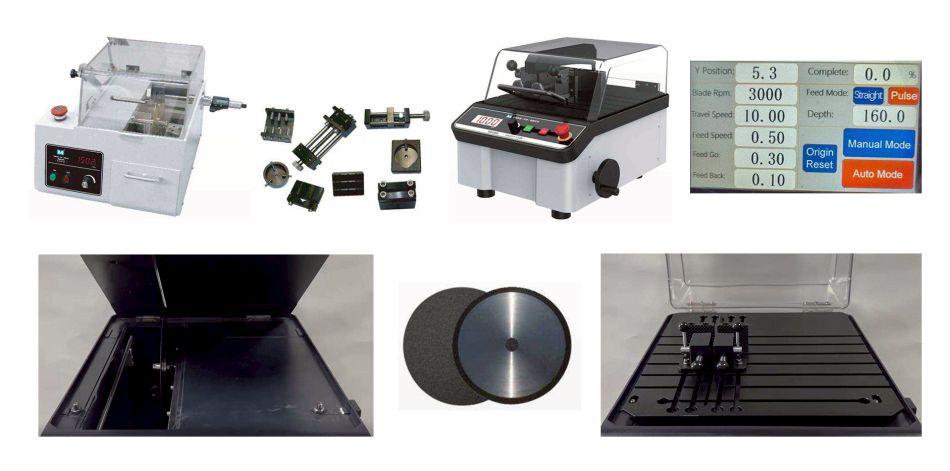

Sample cutting machine is suitable for cutting various metal, nonmetal material in order to observe the metallographic, petrographic structure. The machine has a cooling device. When using the configured cooling liquid, the heat may be taken away to avoid overheating. It is easy for the user to operate the machine. Therefore, the machine is one of the equipment’s for samples in the factories, scientific research institution and college’s laboratory.

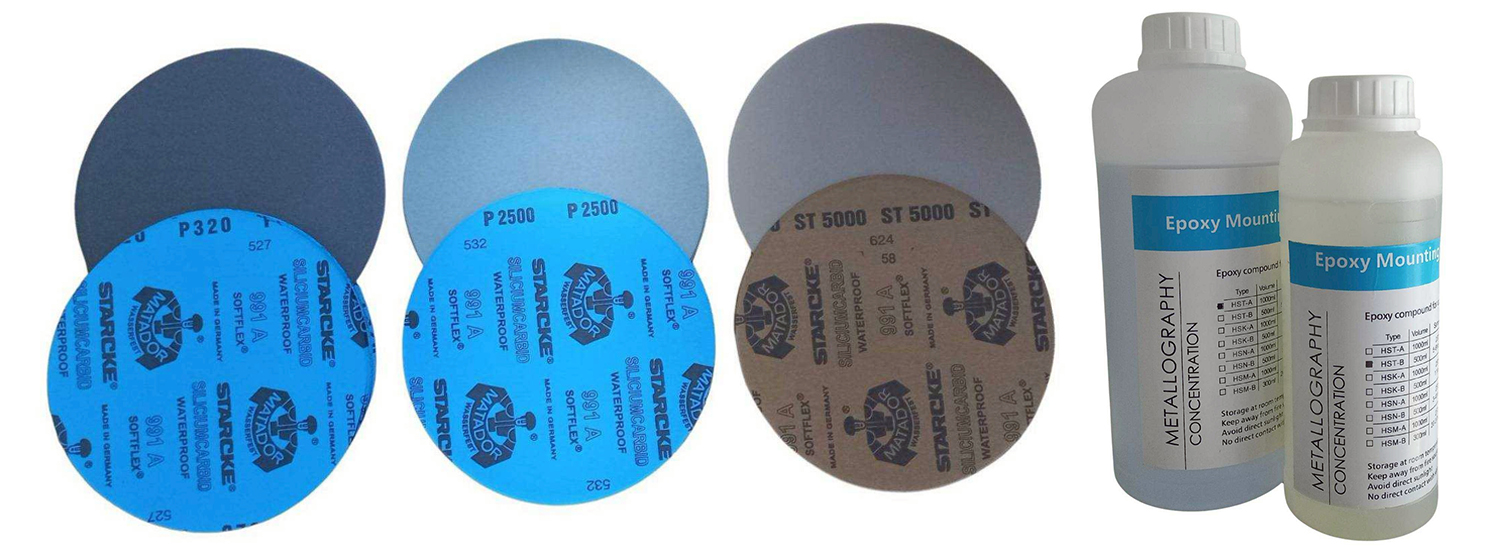

ABRASIVE PAPER / DISC
It is a specialized silicon carbide grinding paper that offers quick and efficient material removal with minimal surface damage
DIAMOND GRINDING DISC
offer a long-wear surface that provides excellent surface flatness for a wide variety of materials.
POLISHING CLOTH
A wide range of polishing cloths are available for coarse, intermediate and final polishing of all materials. They are available with adhesive backing, rigid (steel) or flexible (rubber) ferromagnetic backing
ALUMINA SUSPENSION
It is made of high purity alumina powder with high hardness and strong grinding force. It is used for precision polishing of steel, cast iron, refractory metal, carbide, superalloy and other materials.
Used for electronic parts, PCB/PWB, Semiconductor, copper, Tin, Steel, iron, minerals, polymers.
DIAMOND SUSPENSION
They are excellent for distributing diamond easily and uniformly over the cloth or platen surface, and made with either alcohol (water-free), or water based.
DIAMOND PASTE
Formulated with quality diamond. The tight tolerance particle size distribution guarantees consistent results.
The water/oil soluble paster not only cleans easily, and works well with most lubricants.

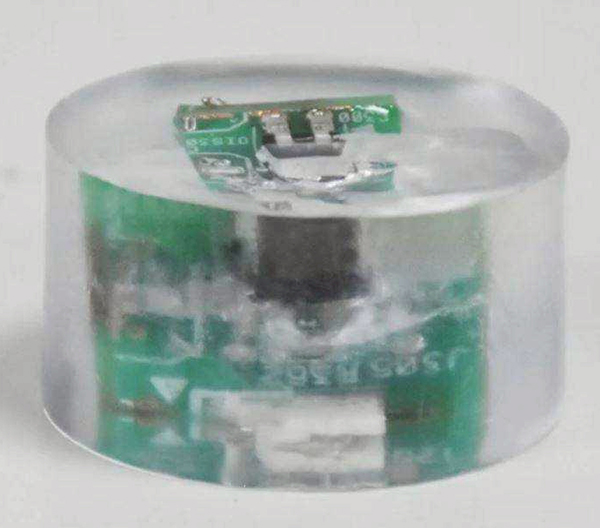

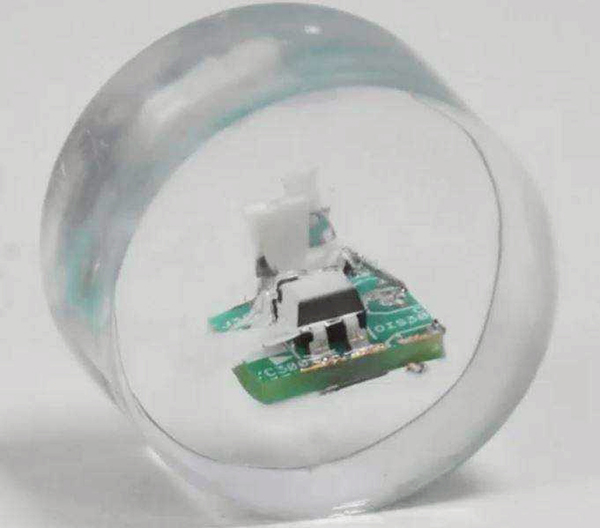

COLD MOUNTING
CONSUMABLES

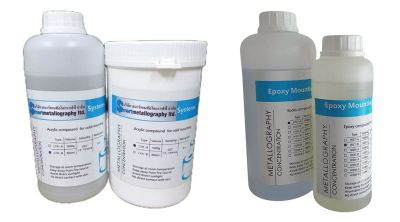

Acrylic resin LYK and Epoxy resin HSN
Product mosaic speed, good transparency, low viscosity,
high strength. It is suitable for metal processing industry
without heating, pressure and inlaying machine.
Curing time at 25 ℃;
10 – 15 min for Acrylic resin LYK-AB
2 – 4 hrs. for Epoxy resin HSN-AB
10 – 15 min for Acrylic resin LYK-AB
2 – 4 hrs. for Epoxy resin HSN-AB

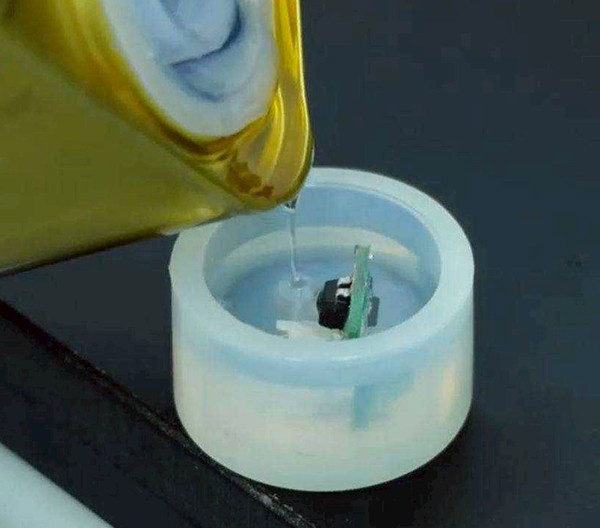

Cold mount silicone mold Material: Blue Silicone Durable, reusable silicone mold cups are suitable for epoxy and acrylic mounting samples.
Transparent plastic support clip
Material: PMMA
Transparent plastic support clip best for castable mount systems. Easy observation.
Transparent plastic support clip best for castable mount systems. Easy observation.

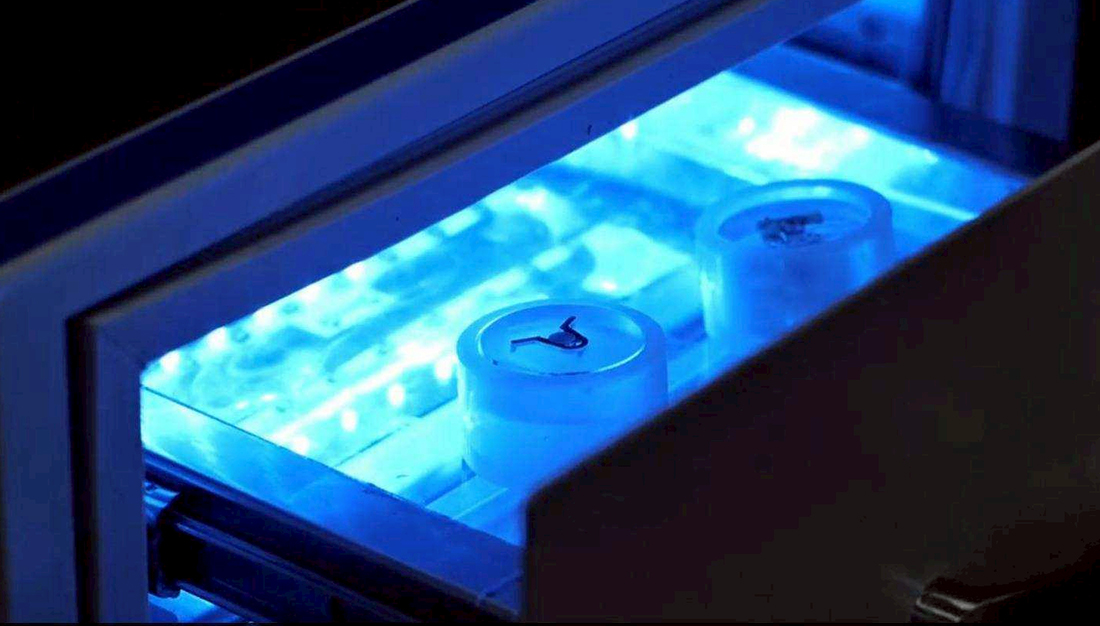

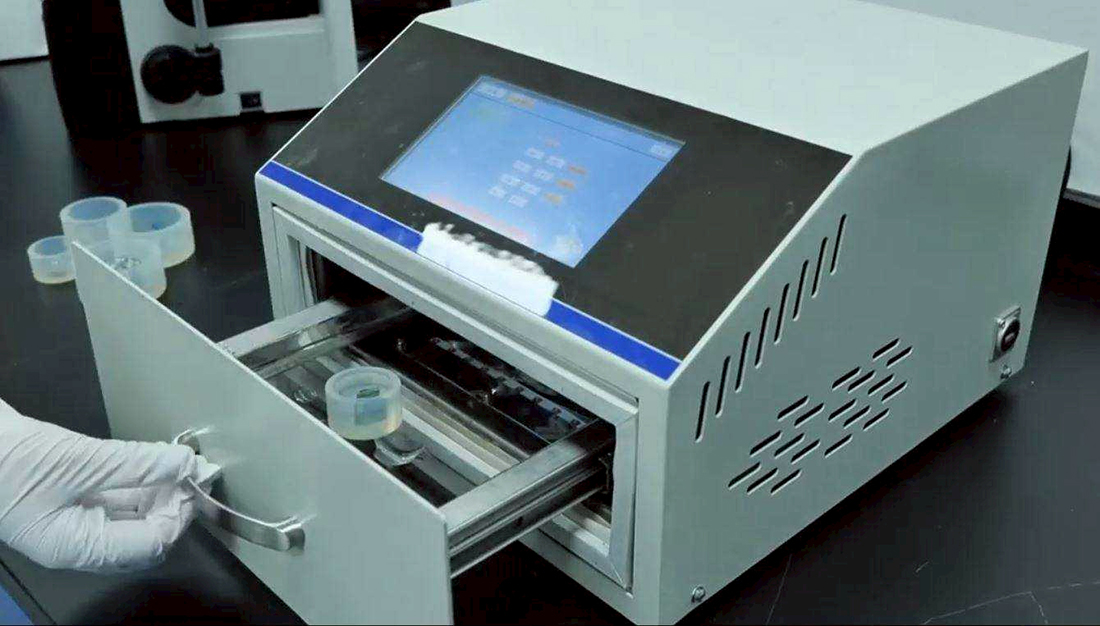

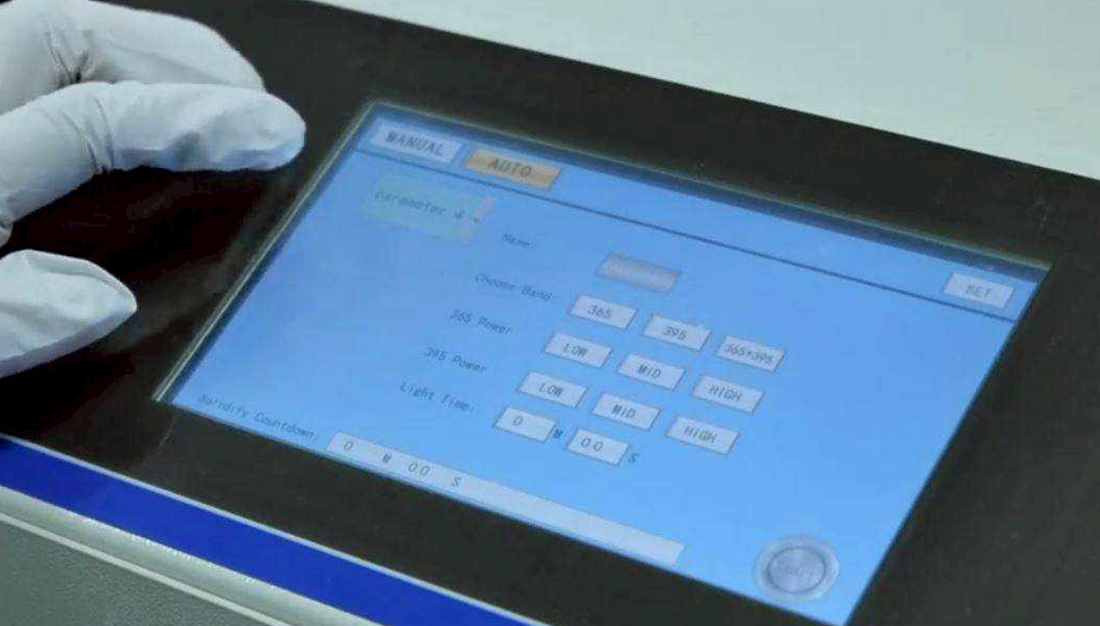

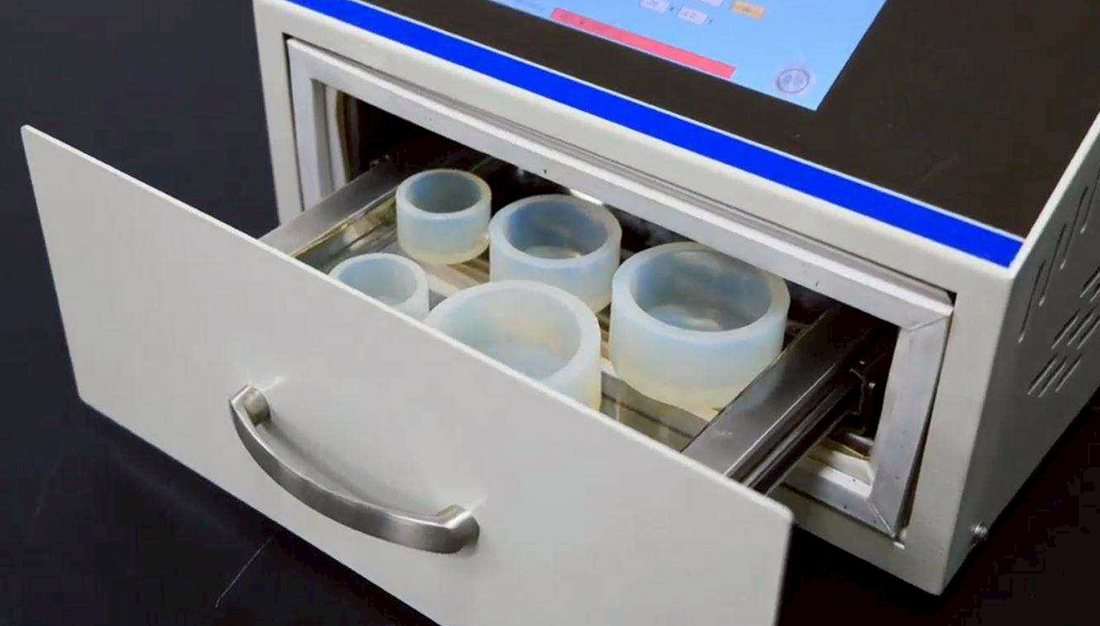

AUTO UV CURING LIGHT
MACHINE
Dual wavelength combination: 365+395;(395+450, 365+450 optional)
Three brightness levels for each wavelength are set independently Surface light source and reflective film, light uniformity, High efficiency of curing within 5 mins.
Range of a larger magnification ratio
Continuous variable objective 0.7X~4.5X (6.4:1)
Standard magnification 7X~45X;
Optional scope and auxiliary objective
3.5-90X amplification
Standard magnification 7X~45X;
Optional scope and auxiliary objective
3.5-90X amplification
Super-long and effective working distance
The effective standard working distance is 100mm.
Optional the working distance will be extended to 26mm~287mm.
to create enough space for use.

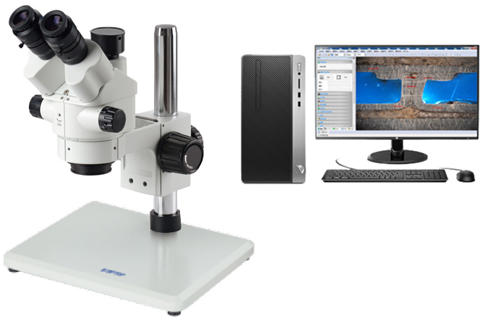

SZM-W computer type body vision microscope is a three-order continuous diploid vision microscope, the classic design of the machine makes the stability of the body better, excellent optical performance, complete accessories, a variety of combination of configuration, to meet the modern biology, medical, scientific research, modern electronic industry online detection
SZM-W |
Stereo microscope |
|---|---|
| Observing tube | Three eyes observation cylinder.45° tilt |
| Objective | High eye point large field of view eye mirror WF10X / 20mm. |
| Ken | 0.7X-4.5X/100mm, achieving a total magnification: 7-45X |
| Standard focus frame | SZMA1 focus mirror frame, focus hand wheel elastic and adjustable, lift range of 50mm. |
| lampstand | B5 (compatible with all focal lens frames) |
| External light source | 56 LED ring lights with adjustable brightness |
| Camera head | 5 Million Sony chip camera device |
| FCL-RS image measurement software |
